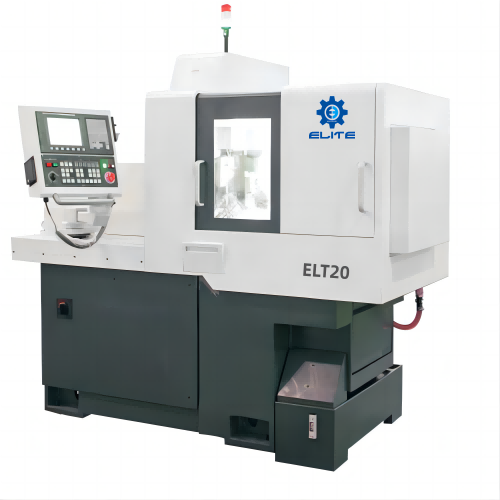

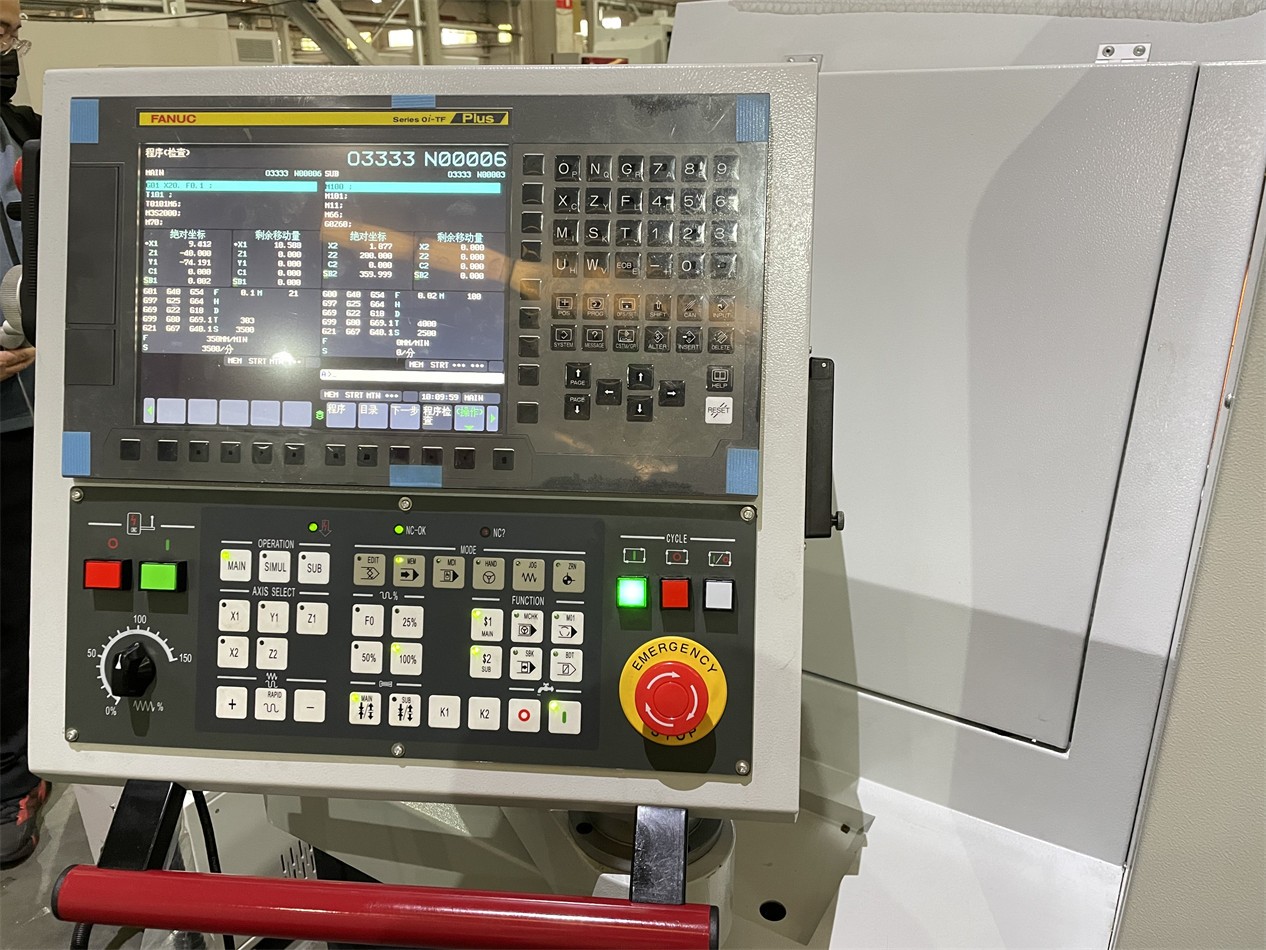

ELT20 Swiss-type CNC lathe adopt FANUC 0i-TF plus Dual port Control system. It is designed for machining of shaft type workpiece widely used in various industries.

On the main spindle, O.D turning, end-face drilling, tapping, boring, threading, slotting, cross drilling, milling, radial tapping, parting off and etc could be performed.

On the sub-spindle, turning, drilling, boring, tapping could be performed.

Main spindle and sub-spindle could work simultaneously to short the cycle time.

The machine could be used together with automatic bar-feeder to realize automatic machining.

Bar-stock requirement:  Diameter consistency: within0.03mm,

Linearity: Within 0.3mm/1000mm).
