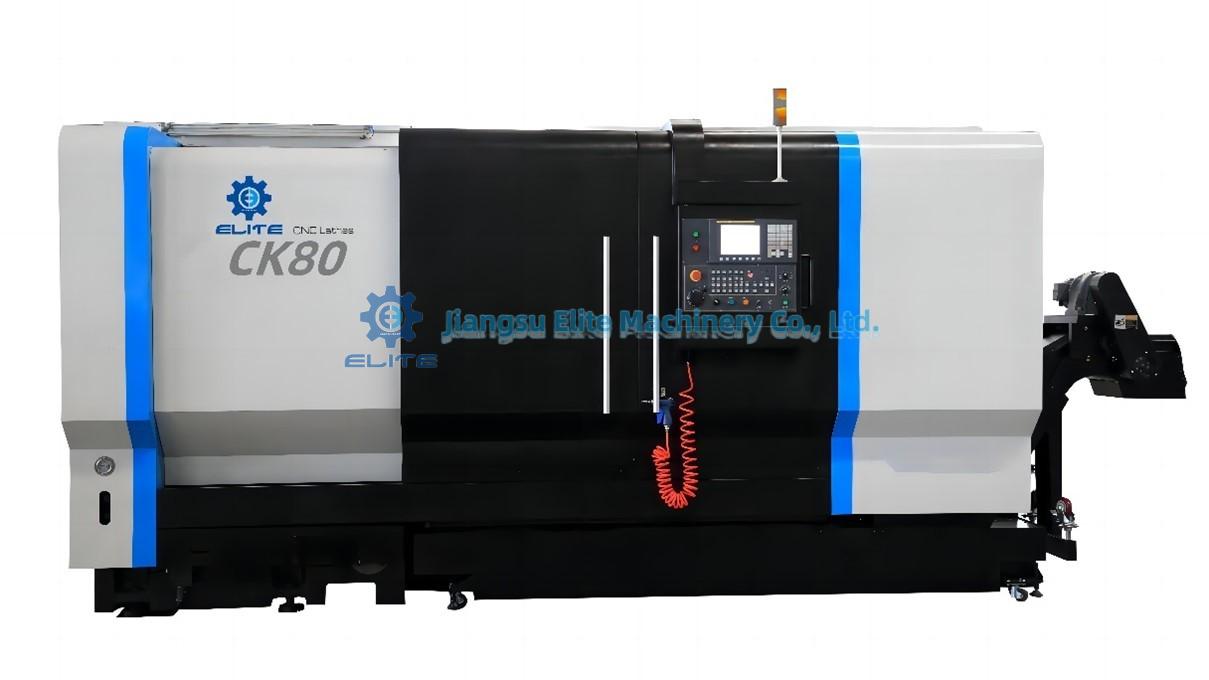

ITEM

CONTENT

UNIT

SPECIFICATION

Capacity

Max.swing dyameter over bed

mm

Ø800

Maximum machining diameter

mm

Ø680

Standard machining ring

inch

22/24

Maximum machining ring width

inch

12

Stroke

X/Z

mm

360/770

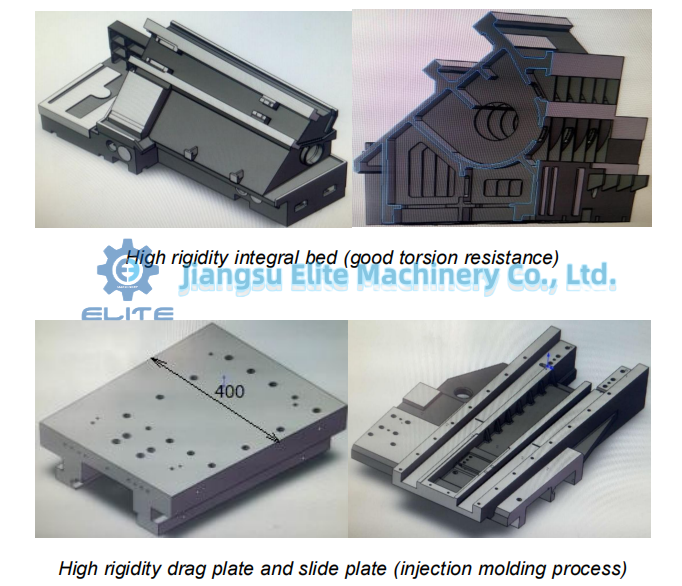

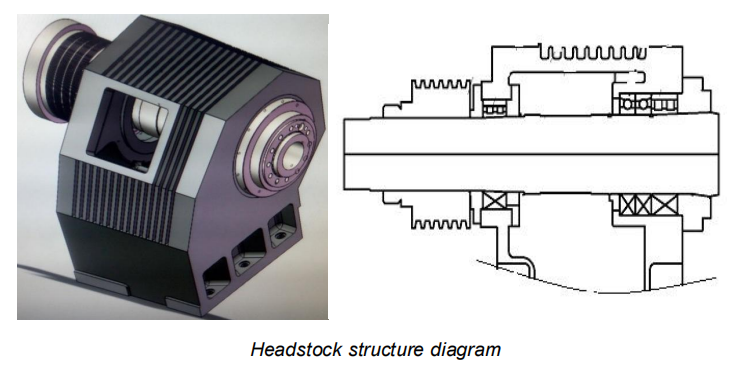

Spindle

Rotate speed

rpm

2500

Nasal form

A2-8

Inside diameter of front bearing

mm

Ø160

Rear bearing bore diameter

mm

Ø150

Motor type

α30/7000i

Motor output (continuous /30 min)

kW

30/37

Acrotorque

Nm

460

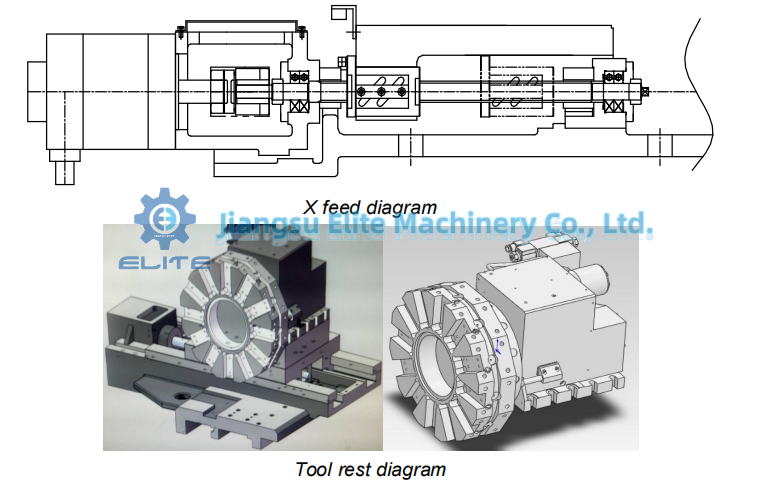

Turret

Number of tools

12

Outside diameter shank size

mm

25×25/32×32

Honing shank size

mm

50

Adjacent tool exchange time

S

0.7

Feed motor

X/Z

kW

4/4

Fast moving

X/Z

m/min

16/20

Lead screw outside diameter x pitch

X/Z

mm

Ø40×P8/Ø50×P10

Cutting fluid unit

Water pump power

Tool cooling

kW

0.55

Chip washing

kW

2.2

Tank capacity

l

400

Hydraulic unit

Pump

kW

2.2

Tank capacity

l

80

Lubrication unit

Pump

W

25

Tank capacity

l

2

Size (exclude conveyer)

Length

mm

4100

Width

mm

2300

Height

mm

2310

Weight

kg

11000

Electrical capacity

kVA

55

Control system

FANUC 0i-TF
