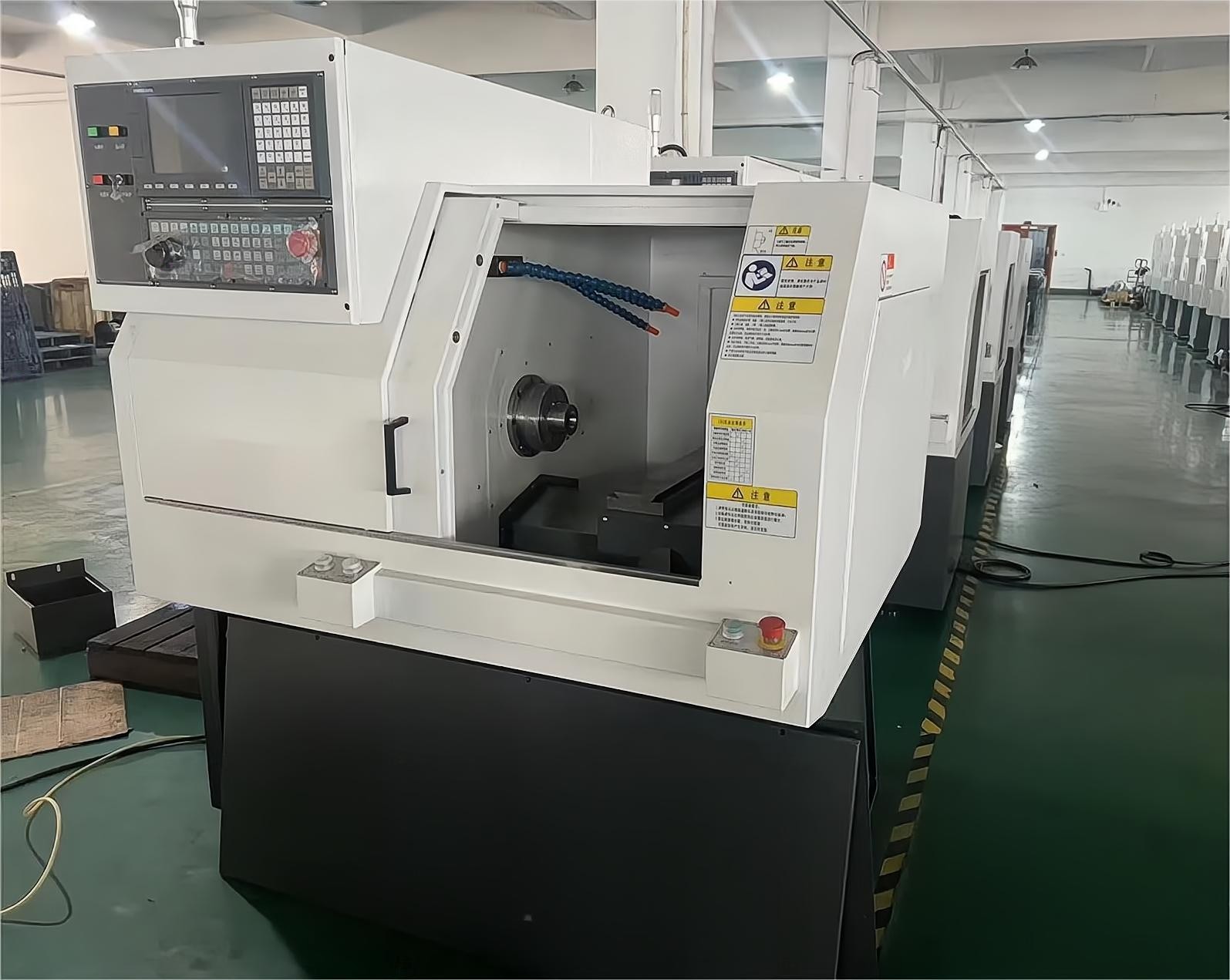

GANG TOOL TYPE CNC LATHE EDJ30

Numerical control system. Taiwan (new generation) system, high stability, high precision.

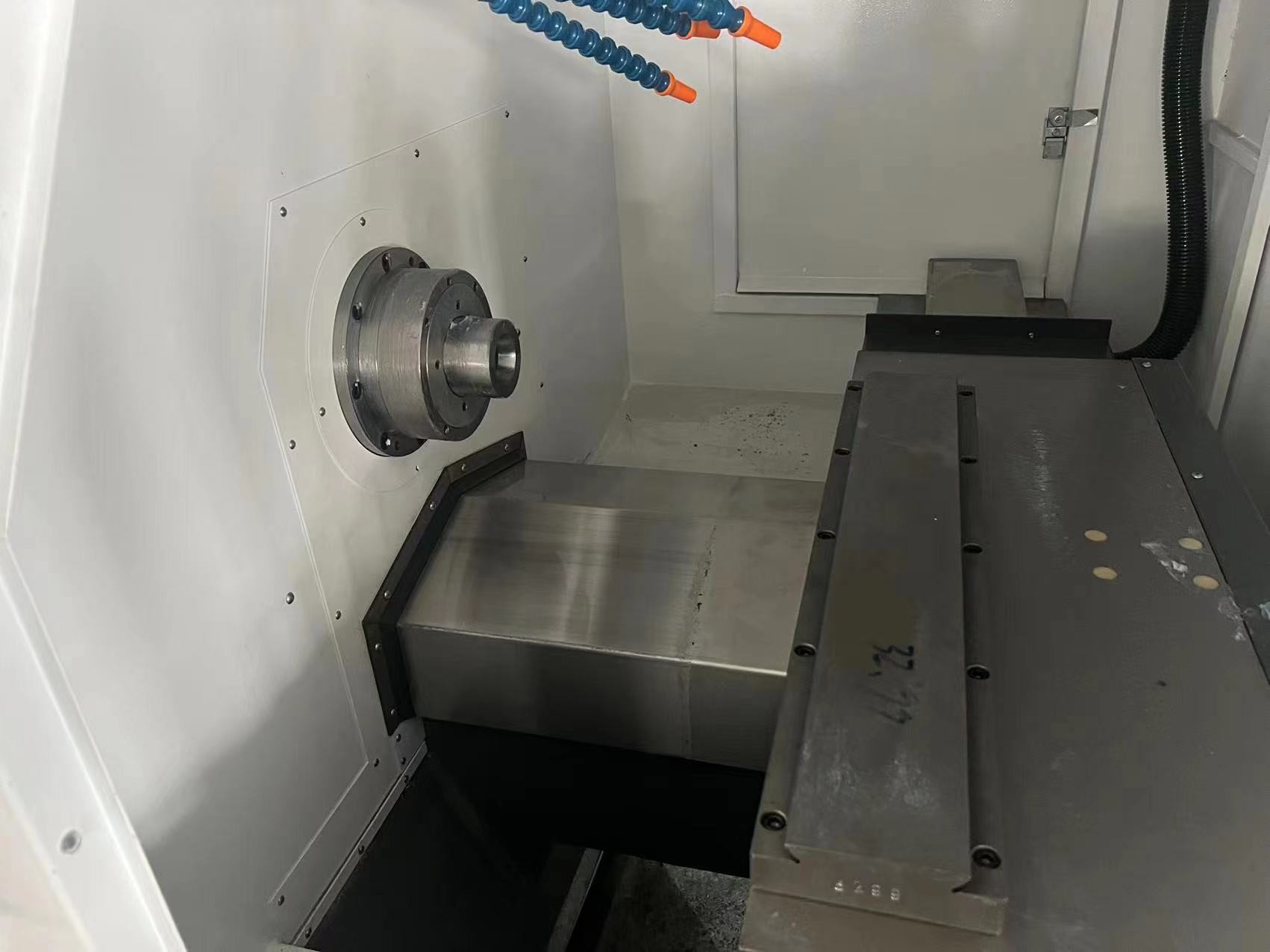

High precision spindle. The machine tool spindle adopts NSK(Japan) ultra-high precision angular contact ball bearing to ensure the high rigidity and durable accuracy of the spindle. The spindle runout is less than 3um.

Product Detail

NO.	Item	Specification	Unit	Remark
1	Max.swing over bedmm	Φ240	mm
2	Diameter of rotation on X axis platform	Φ120	mm
3	Max. machining rod diameter	Φ30	mm
4	Max. length of machined parts	100	mm
5	Maximum spindle speed	6000	r/min	Servo speed control
6	Spindle drawing pipe through hole diameter	Φ31	mm
7	Main motor power	4.2	kw	Built-in spindle motor
8	max. drilling diameter	Φ10	mm
9	Maximum tap thread	M8
10	Turning tool shank size	16×16	mm
11	X-axis stroke	320	mm
12	Z-axis stroke	180	mm
13	Min. setting unit of X and Z aixs	0.001	mm
14	X/Z axis fast moving speed	18	m/min
15	Repeated positioning accuracy	≤0.003	mm
16	Cooling motor power	0.18	kW
17	Size	1350×1290×1550	mm
18	Weight	~1500	kg
