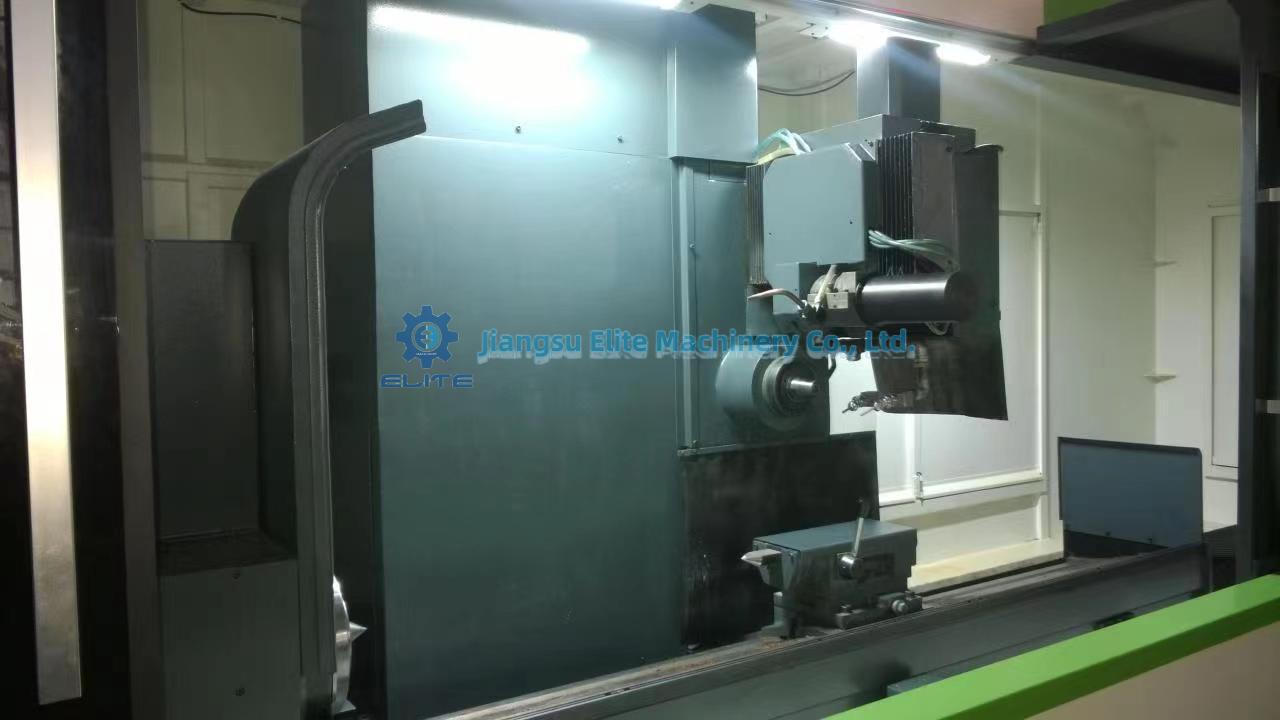

NO.

ITEM

Specification

1

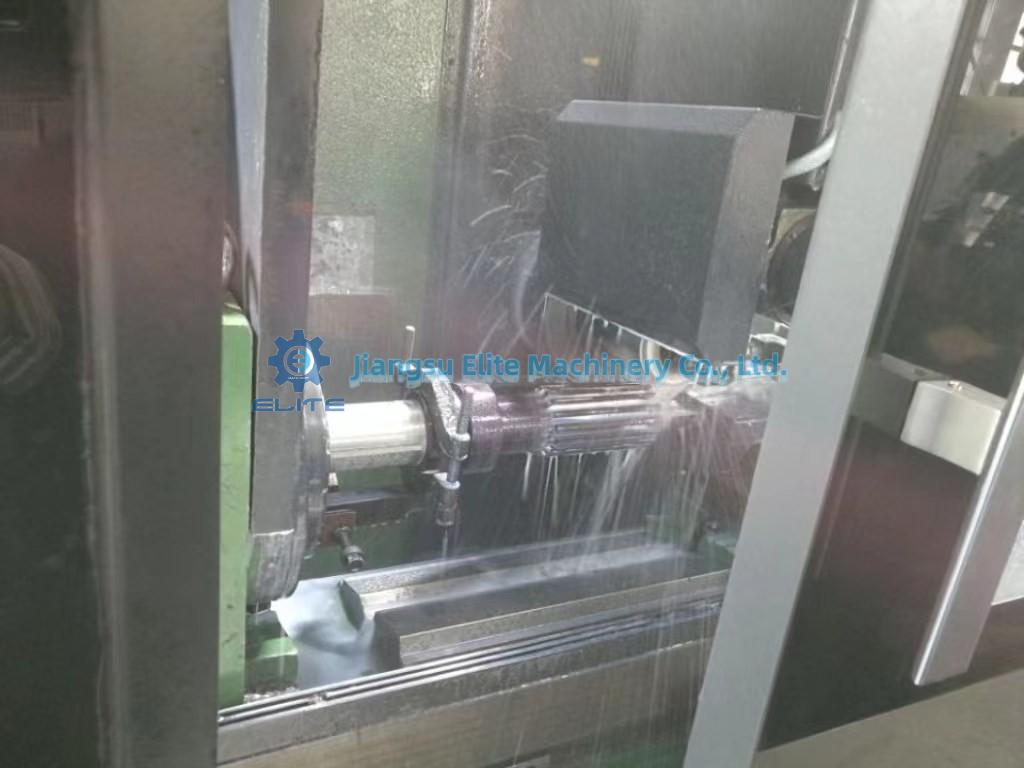

Spline shaft diameter to be ground

φ11-φ125mm

2

Max. Center distance

1500mm

3

Center's height

160mm

4

Max. length to be ground

1400mm

5

Vertical shift of wheelhead

270mm

6

Distance of wheel spindle center line to workhead & tailstock center line

35-315mm

7

Rapid elevating and lowering speed of wheelhead

750mm/min

8

Max. table traverse

1470mm

9

The speed of table traverse

1-12m/min

10

Taper of work spindle

Morse *6

11

Inside diameter of work spindle

φ50mm

12

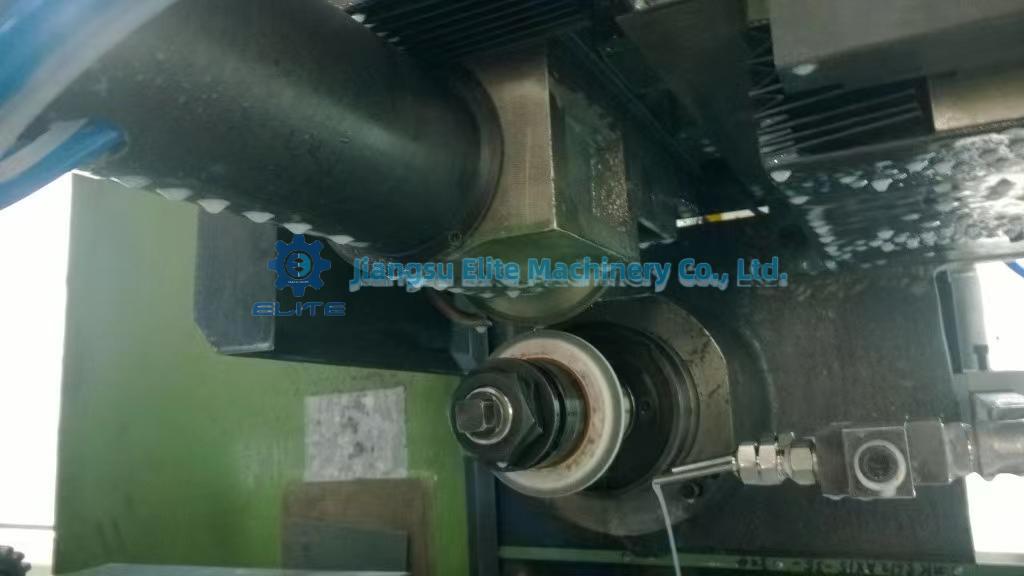

Wheel diameter (outer)

φ175-φ50mm

13

Wheel diameter (bore)

φ32mm; φ20mm

Main specifications of motors

⑴

Vheel spindle motor (with an AC frequency converter)

2000-6000rpm, 3kw

⑵

Coolant pump motor

AYB-100 370V 100L/min

⑶

Coolant pump motor of Dressei

AYB-100 370V 100L/min

15

Overrall diameter (LxVxH)

4835X1420X2220min

16

Machine Weight

Approx 10000kg

17

Max. Weight of Vorkpiece to be Applied to Machine

130 kg

18

Working Size of Machine (See Fig.1)
